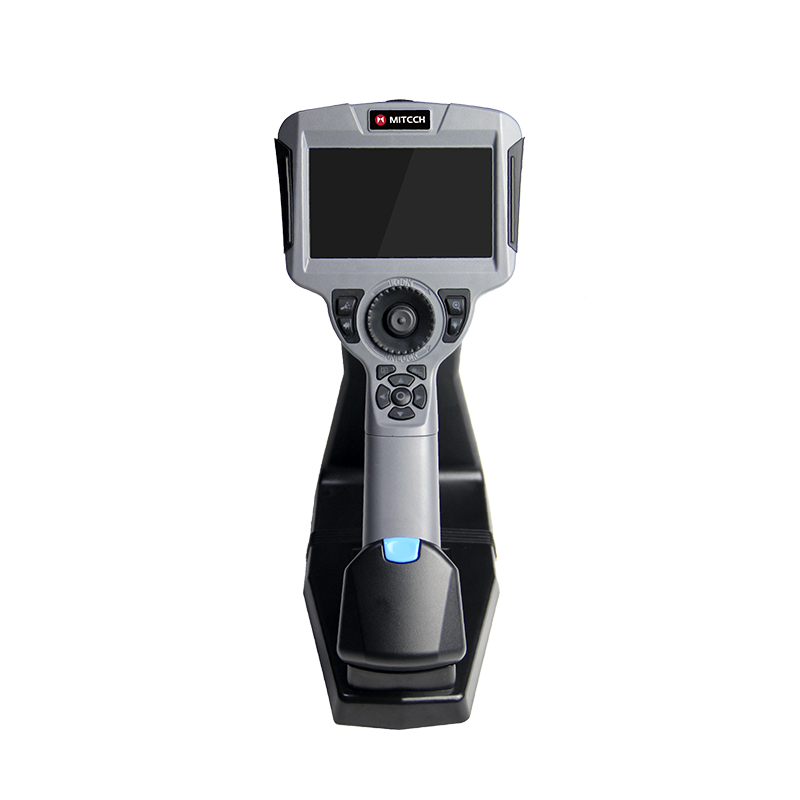

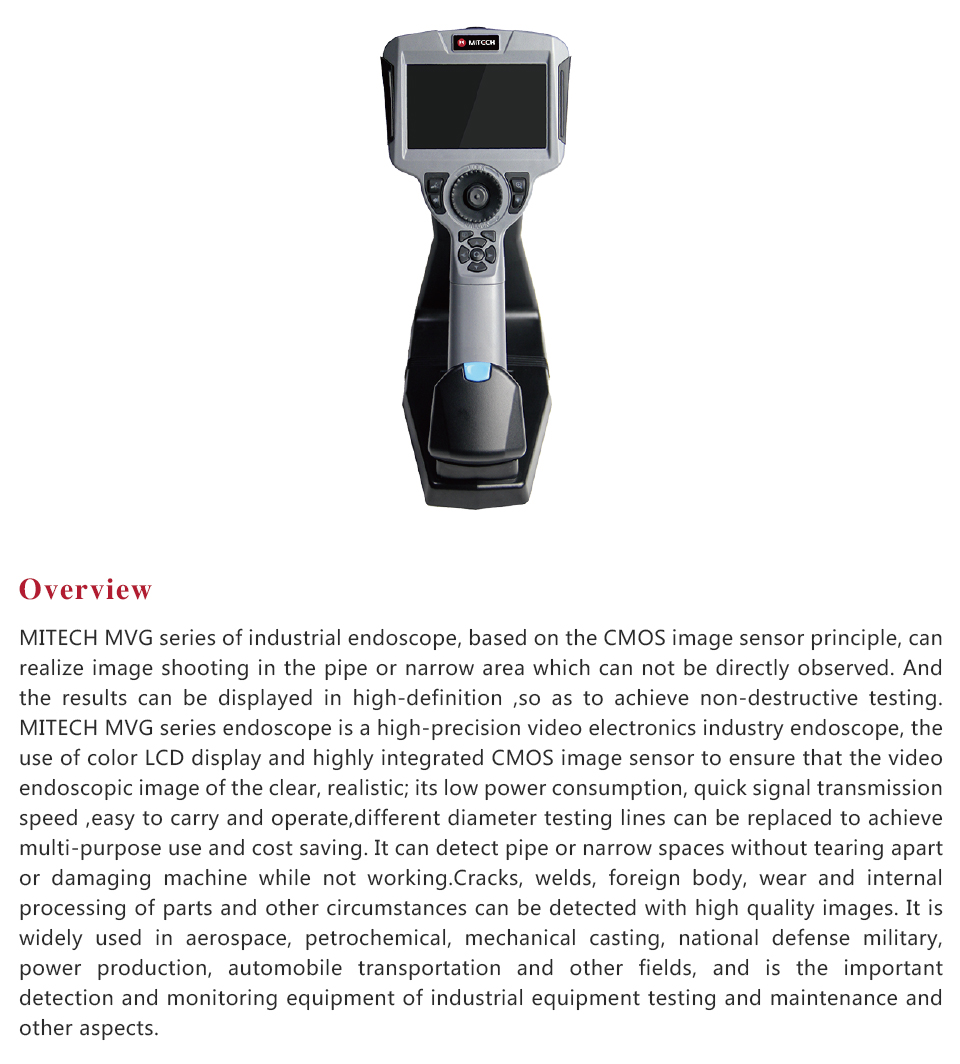

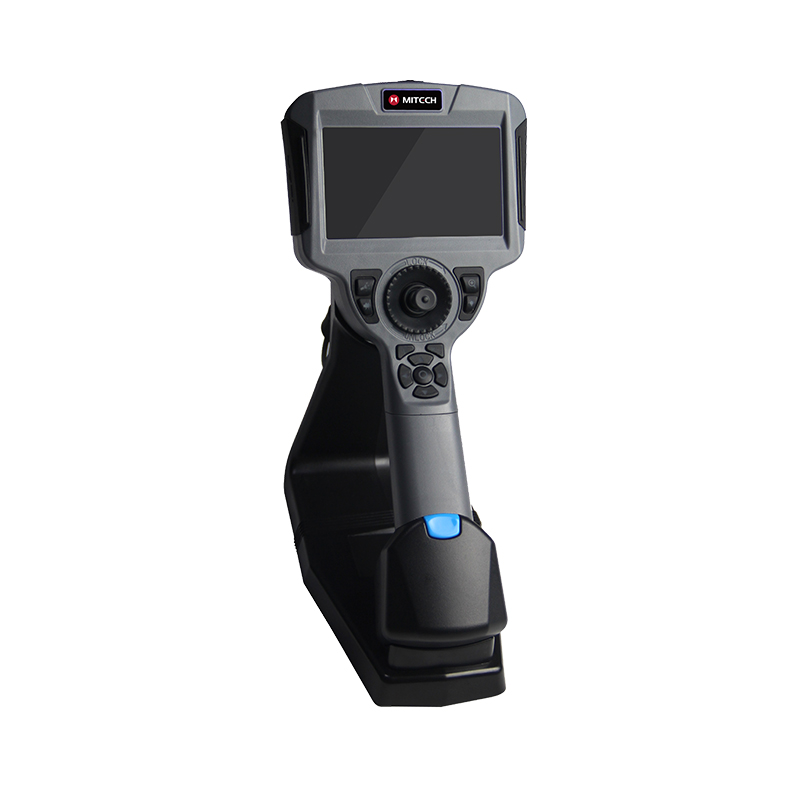

Product OverviewMITECH MVG series of industrial endoscope, based on the CMOS image sensor principle, can realize image shooting in the pipe or narrow area which can not be directly observed. And the results can be displayed in high-definition ,so as to achieve non-destructive testing. MITECH MVG series endoscope is a high-precision video electronics industry endoscope, the use of color LCD display and highly integrated CMOS image sensor to ensure that the video endoscopic image of the clear, realistic; its low power consumption, quick signal transmission speed ,easy to carry and operate,different diameter testing lines can be replaced to achieve multi-purpose use and cost saving. It can detect pipe or narrow spaces without tearing apart or damaging machine while not working.Cracks, welds, foreign body, wear and internal processing of parts and other circumstances can be detected with high quality images. It is widely used in aerospace, petrochemical, mechanical casting, national defense military, power production, automobile transportation and other fields, and is the important detection and monitoring equipment of industrial equipment testing and maintenance and other aspects.

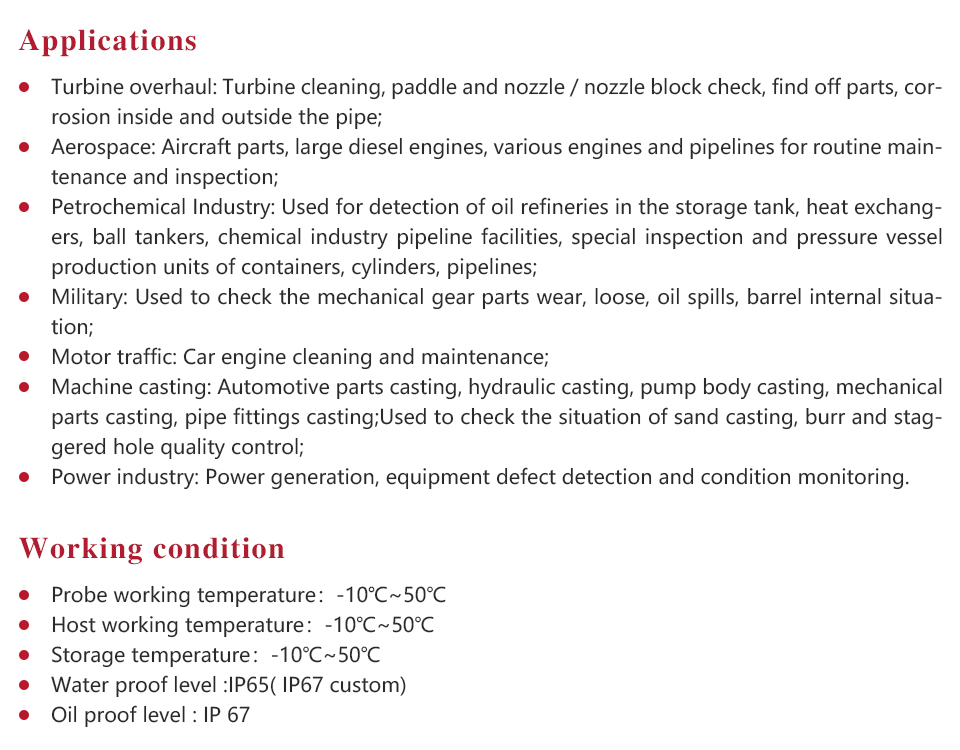

Function & applicationl Turbine overhaul: Turbine cleaning, paddle and nozzle / nozzle block check, find off parts, corrosion inside and outside the pipe;
l Aerospace: Aircraft parts, large diesel engines, various engines and pipelines for routine maintenance and inspection;
l Petrochemical Industry: Used for detection of oil refineries in the storage tank, heat exchangers, ball tankers, chemical industry pipeline facilities, special inspection and pressure vessel production units of containers, cylinders, pipelines;
l Military: Used to check the mechanical gear parts wear, loose, oil spills, barrel internal situation;
l Motor traffic: Car engine cleaning and maintenance;
l Machine casting: Automotive parts casting, hydraulic casting, pump body casting, mechanical parts casting, pipe fittings casting;Used to check the situation of sand casting, burr and staggered hole quality control;
l Power industry: Power generation, equipment defect detection and condition monitoring.
Working PrincipleBased on the CMOS image sensor principle，MITECH MVJ industrial endoscope can collect picture information in narrow spaces. The digital signal can be transferred to the host through video signal cable plugged in pipe, thus to achieve picture display and storage.The oriented joints connect the probe with insert tube and the guide wire inside the joints can turn around freely in all directions controlled by mechanical device. As a result, the CMOS sensor can shoot excellent photos as required in time.
Working Conditionsl Probe working temperature：-10℃~50℃
l Host working temperature：-10℃~50℃
l Storage temperature：-10℃~50℃
l Waterproof level :IP65( IP67 custom)
l Oil proof level : IP 67

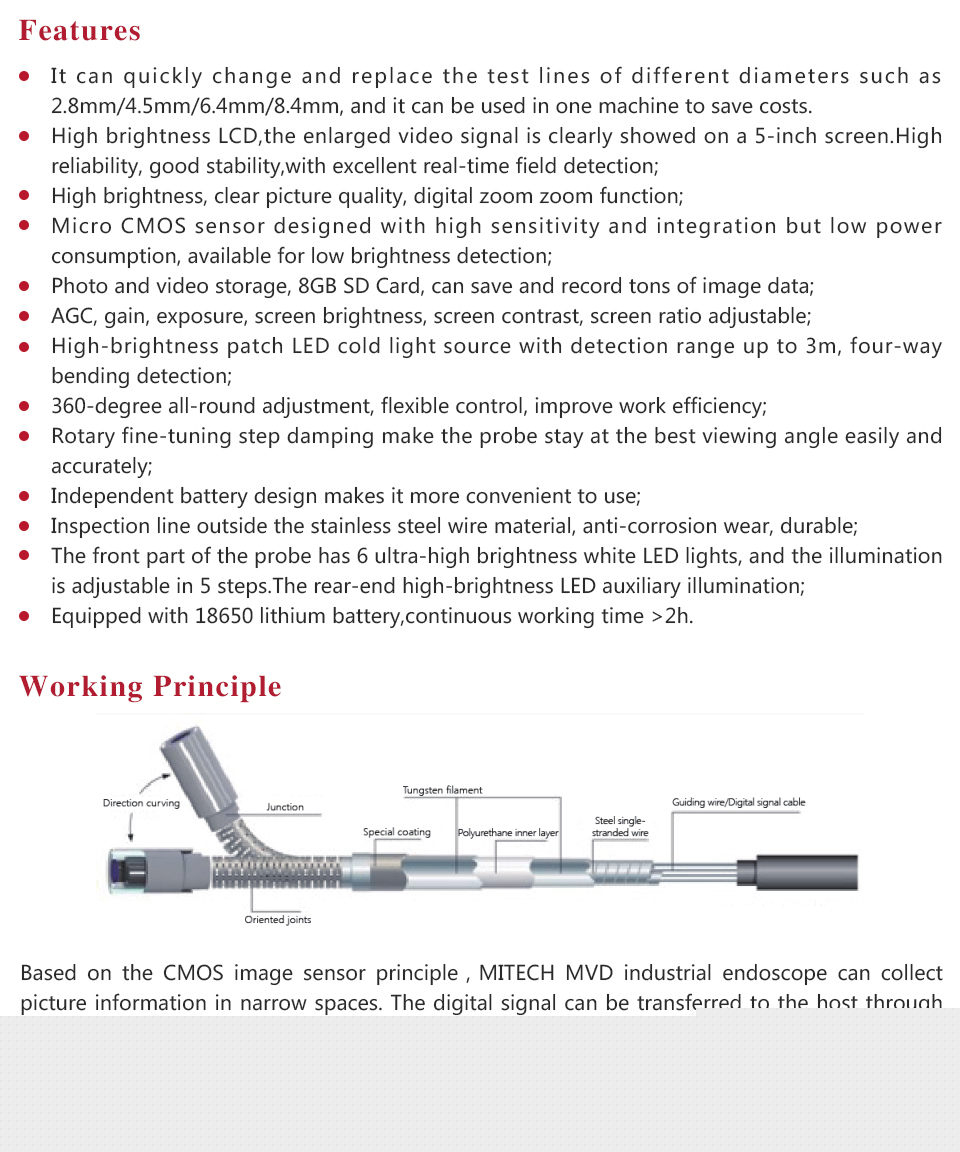

Instrument Featuresl It can quickly change and replace the test lines of different diameters such as 2.8mm/4.5mm/6.4mm, and it can be used in one machine to save costs.
l High brightness LCD,the enlarged video signal is clearly showed on a 5-inch screen.High reliability, good stability, with excellent real-time field detection;
l High brightness, clear picture quality, digital zoom zoom function
l Micro CMOS sensor designed with high sensitivity and integration but low power consumption, available for low brightness detection;
l Photo and video storage, 8GB SD Card, can save and record tons of image data;
l AGC, gain, exposure, screen brightness, screen contrast, screen ratio adjustable;
l High-brightness patch LED cold light source with detection range up to 3m, four-way bending detection;
l 360-degree all-round adjustment, flexible control, improve work efficiency;
l Rotary fine-tuning step damping make the probe stay at the best viewing angle easily and accurately;
l Independent battery design makes it more convenient to use;
l Inspection line outside the stainless steel wire material, anti-corrosion wear, durable;
l The front part of the probe has 6 ultra-high brightness white LED lights, and the illumination is adjustable in 5 steps. The rear-end high-brightness LED auxiliary illumination;
l Equipped with 18650 lithium battery,continuous working time >2h.
Operating Method and AttentionsInstrument Maintenancel Don’t use the instrument if the temperature is not in -10°C～50°C in case that you may damage the probe;
l Do not use or place the product in a corrosive environment;
l Do not expose the product to rain. Do not place the probe in a liquid for a long time;
l Do not place the product near strong magnetic objects;
l Do not use it if there is too much dust in the environment;
l Keep the body clean and avoid scratching the screen;
l Do not attempt to disassemble the product yourself. The repairing service is limited by the original authorized staff;
l Do not operate the joystick while the wire is in circle in case it being damaged;
l While shooting , make sure the brightness is OK and probe should be stable;
l Before using, you should check if the battery is in or about to die;
l After use, adjust the joystick to make joints straight and then pull out. Avoid pulling hard because that may lead to damage to the probe;
l After use, do not soak the product, the soft cloth can be used to clean the probe and mirror host, and then into the ABS case, so as not to cause corrosion or damage to the instrument;
l The mirror and monitor are not allowed to be squeezed, impacted to prevent unnecessary damage. When the device is not in use, be sure to remove the battery to prevent damage to the battery and corrode the instrument.
-
-

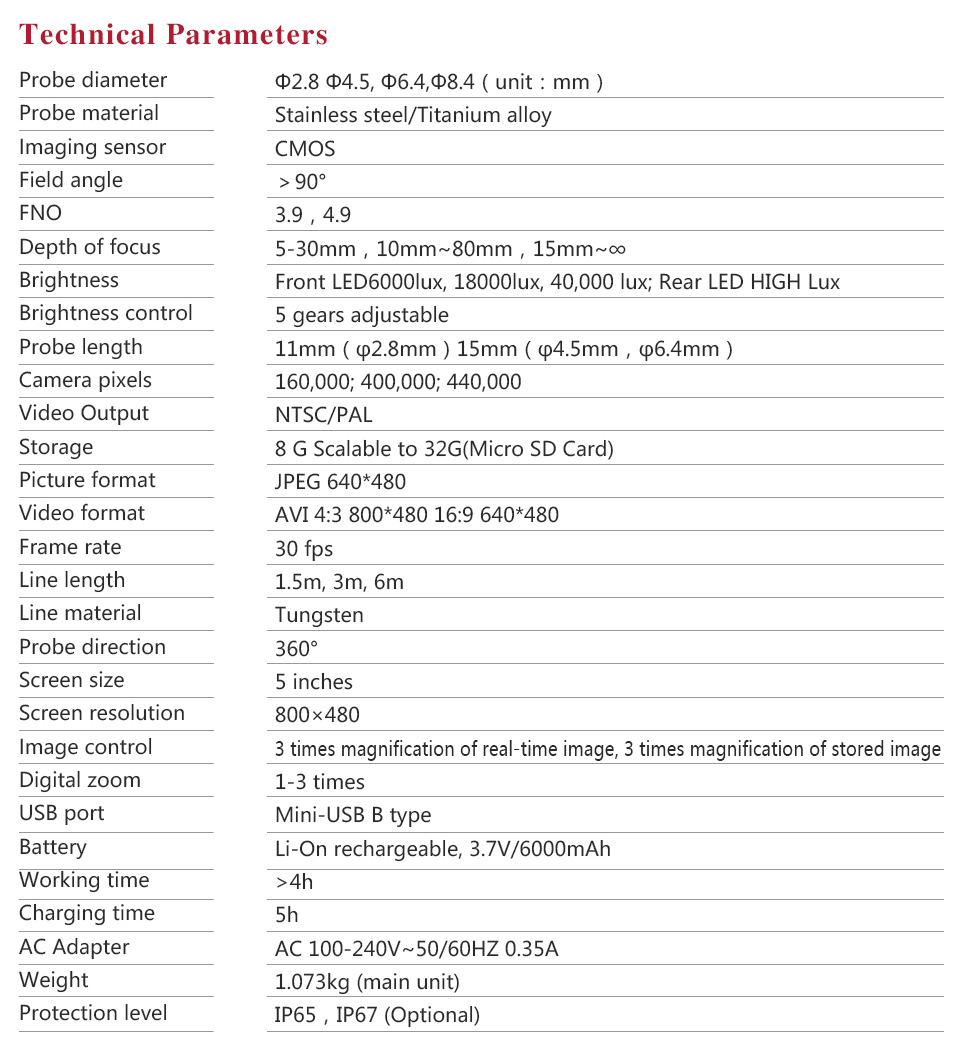

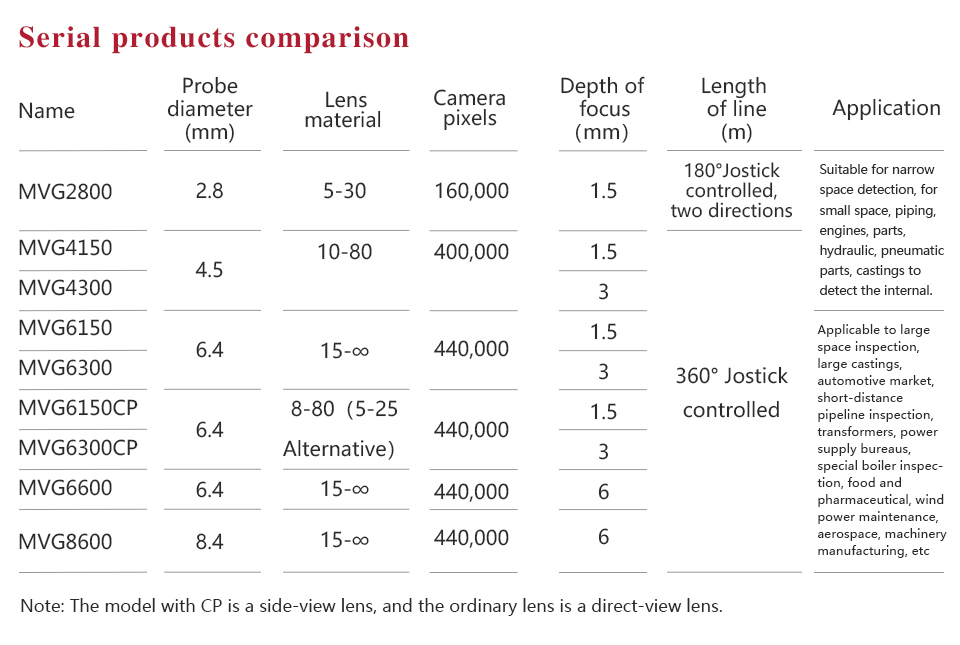

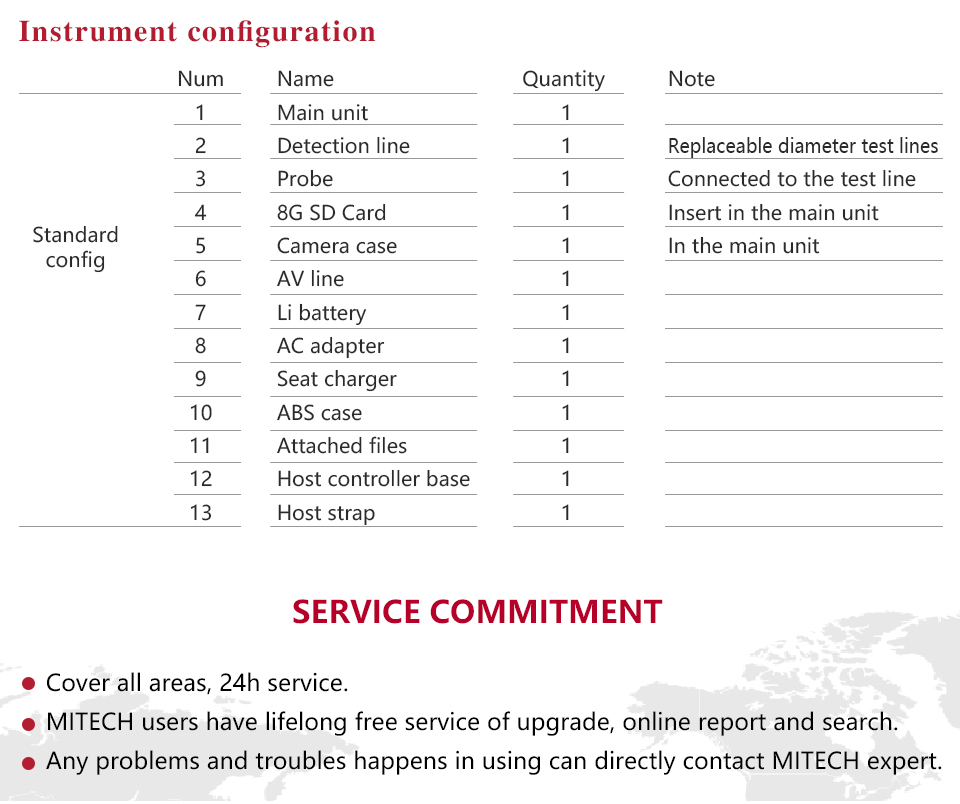

Probe diameter ?2.8 ?4.5, ?6.4（unit：mm） Probe material Stainless steel/Titanium alloy Imaging sensor CMOS Field angle ＞90° FNO 3.9，4.9 Depth of focus 5-30mm，10mm~80mm，15mm~∞ Brightness Front LED6000lux, 18000lux, 40,000 lux; Rear LED HIGH Lux Brightness control 5 gears adjustable Probe length 11mm（φ2.8mm）15mm（φ4.5mm，φ6.4mm） Camera pixels 160,000; 400,000; 440,000 Video Output NTSC/PAL Storage 8 G Scalable to 32G(Micro SD Card) Picture format JPEG 640*480 Video format AVI 4:3 800*480 16:9 640*480 Frame rate 30 fps Line length 1.5m，3m Line material Tungsten Probe direction 360° Screen size 5 inches Screen resolution 800×480 Image control 3 times magnification of real-time image, 3 times magnification of stored image Digital zoom 1-3 times Battery Li-On rechargeable, 3.7V/6000mAh Working time >4h Charging time 5h AC Adapter AC 100-240V~50/60HZ 0.35A Weight 1.073kg (main unit) Protection level IP65，IP67 (Optional) -
-
