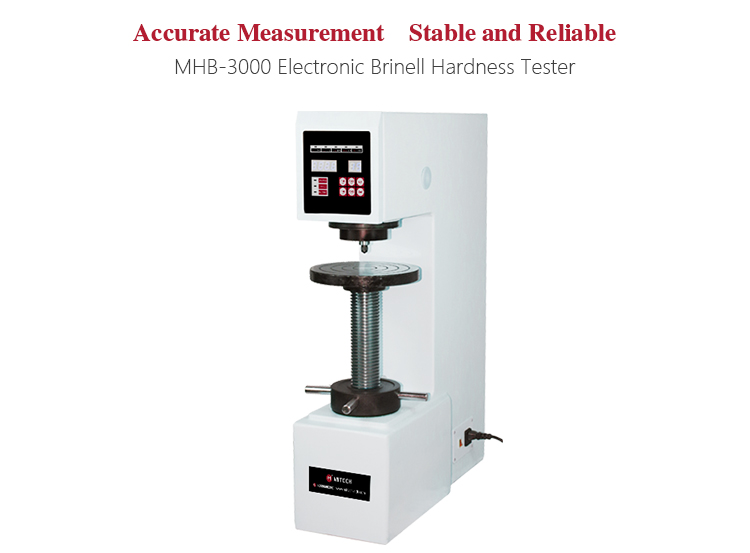

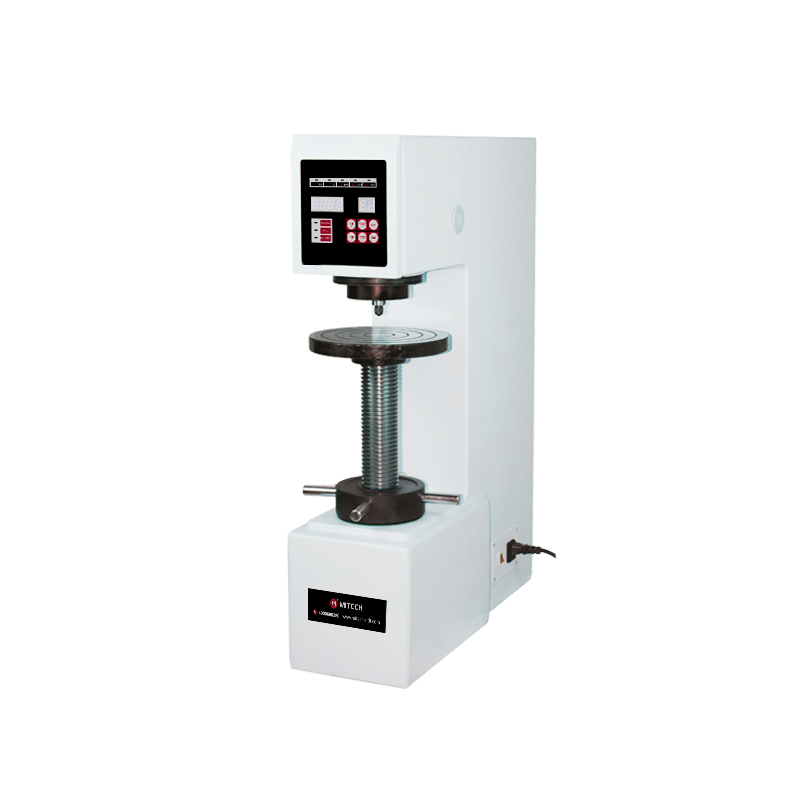

Product OverviewMitech MHB-3000 Electronic Brinell Hardness Tester, based on the mechanical principle of hard alloy indenter pressing into the sample surface to produce indentation, realizing the material hardness measurement by measuring the diameter of the indentation , it is novel and high reliable with accurately measurement. LED eight digital tubes and luminescent secondary tube display, simple operation, it can visually display the test results to meet the hardness testing requirement for the quality control and qualified assessment of the workpiece sample. It is widely used in metal processing and manufacturing, various metal material’s failure analysis and other fields like colleges and research institutions. It is the new type Brinell hardness testing instrument for testing the hardness of the materials like cast iron, steel, soft alloy and so on.

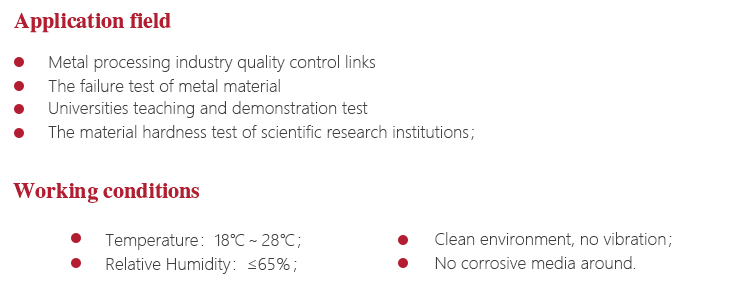

Function & applicationl Metal processing industry quality control links
l Universities teaching and demonstration test
l The failure test of metal material
l The material hardness test of scientific research institutions

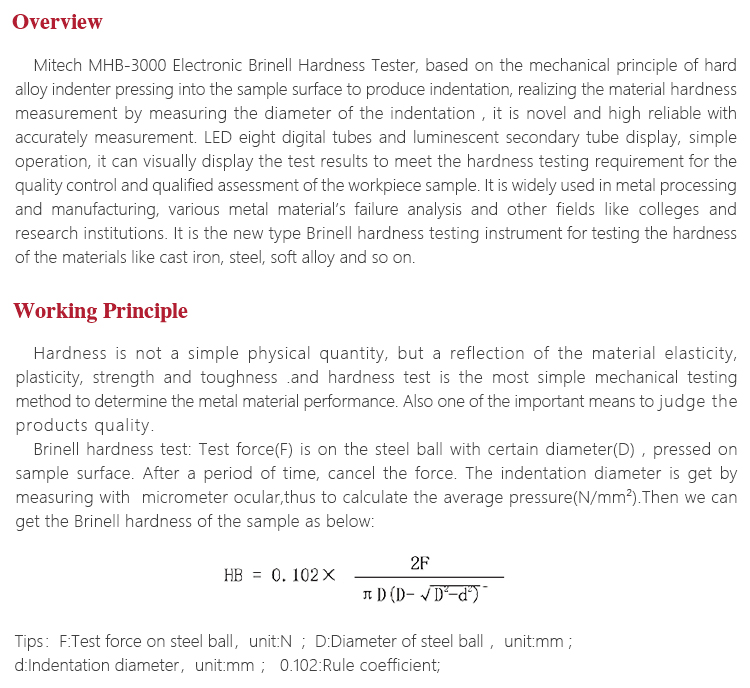

Working PrincipleHardness is not a simple physical quantity, but a reflection of the material elasticity, plasticity, strength and toughness. And hardness test is the simplest mechanical testing method to determine the metal material performance, also one of the important means to judge the products quality.

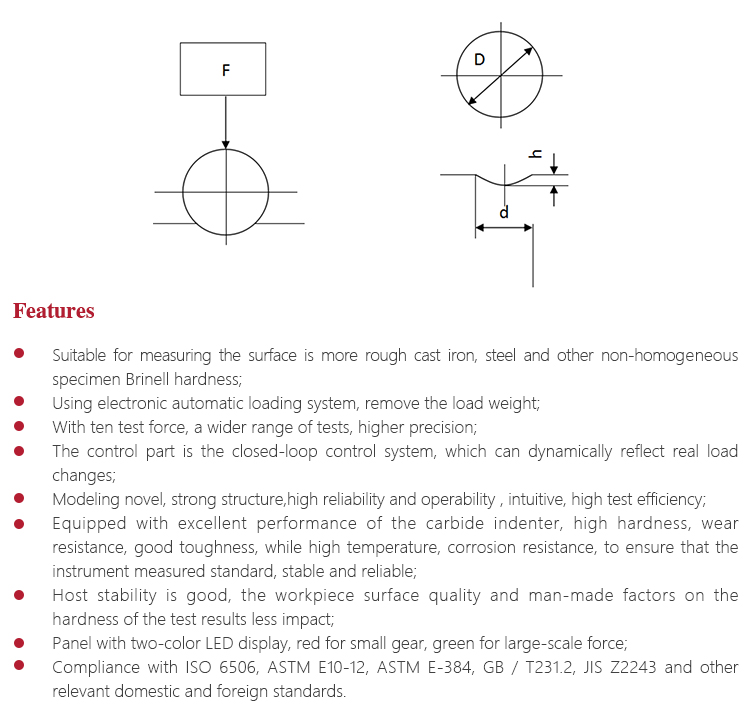

Brinell hardness test: Test force (F) is on the steel ball with certain diameter(D) , pressed on sample surface. After a period of time, cancel the force. The indentation diameter is get by measuring with micrometer ocular, thus to calculate the average pressure(N/mm2).
Working Conditionsl Working Temperature：18℃～28℃；
l Relative Humidity：≤65％；
l Clean environment, no vibration；
l No corrosive media around.
Instrument Featuresl Suitable for measuring the surface is more rough cast iron, steel and other non-homogeneous specimen Brinell hardness;
l Using electronic automatic loading system, remove the load weight;
l With ten test force, a wider range of tests, higher precision;l
l The control part is the closed-loop control system, which can dynamically reflect real load changes.
l Modeling novel, strong structure,high reliability and operability , intuitive, high test efficiency;
l Equipped with excellent performance of the carbide indenter, high hardness, wear resistance, good toughness, while high
temperature,
corrosion resistance, to ensure that the instrument measured standard, stable and reliable;
l Host stability is good, the workpiece surface quality and man-made factors on the hardness of the test results less impact;
l Panel with two-color LED display, red for small gear, green for large-scale force;
l Compliance with ISO 6506, ASTM E10-12, ASTM E-384, GB / T231.2, JIS Z2243 and other relevant domestic and foreign
standards.

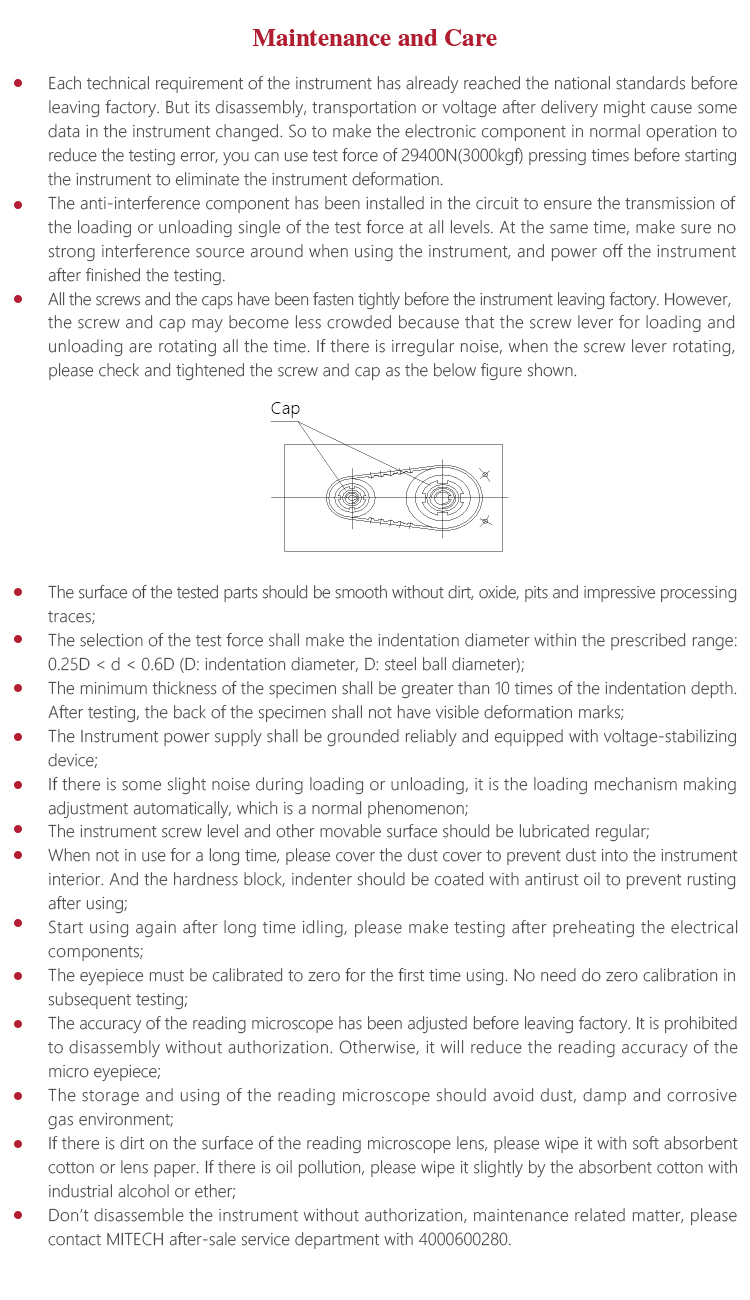

Operating Method and AttentionsInstrument Maintenancel Each technical requirement of the instrument has already reached the national standards before leaving factory. But its
disassembly, transportation or voltage after delivery might cause some data in the instrument changed. So to make the
electronic component in normal operation to reduce the testing error, you can use test force of 29400N(3000kgf) pressing
times before starting the instrument to eliminate the instrument deformation.
l The anti-interference component has been installed in the circuit to ensure the transmission of the loading or unloading
single of the test force at all levels. At the same time, make sure no strong interference source around when using the
instrument, and power off the instrument after finished the testing.

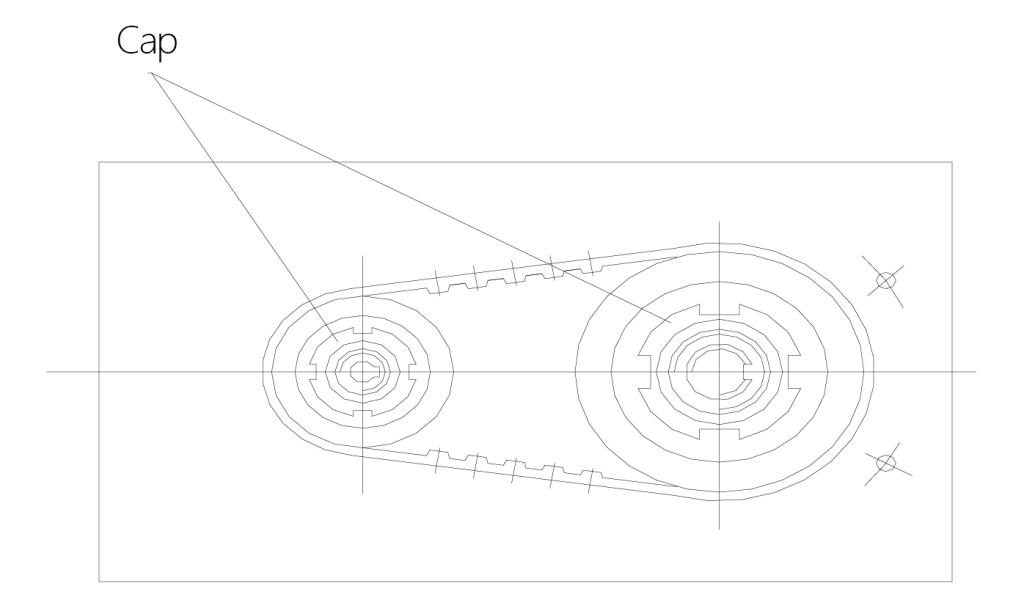

l All the screws and the caps have been fasten tightly before the instrument leaving factory. However, the screw and cap
may become less crowded because that the screw lever for loading and unloading are rotating all the time. If there is
irregular noise, when the screw lever rotating, please check and tightened the screw and cap as the below figure shown.
l The surface of the tested parts should be smooth without dirt, oxide, pits and impressive processing traces;
l The selection of the test force shall make the indentation diameter within the prescribed range: 0.25D < d < 0.6D (D:
indentation diameter, D: steel ball diameter);
l The minimum thickness of the specimen shall be greater than 10 times of the indentation depth. After testing, the back of
the specimen shall not have visible deformation marks;
l The Instrument power supply shall be grounded reliably and equipped with voltage-stabilizing device;
l If there is some slight noise during loading or unloading, it is the loading mechanism making adjustment automatically,
which is a normal phenomenon.
l The instrument screw level and other movable surface should be lubricated regular.
l When not in use for a long time, please cover the dust cover to prevent dust into the instrument interior. And
the hardness block, indenter should be coated with antirust oil to prevent rusting after using.
l Start using again after long time idling, please make testing after preheating the electrical components.
l The eyepiece must be calibrated to zero for the first time using. No need do zero calibration in subsequent testing.
l The accuracy of the reading microscope has been adjusted before leaving factory. It is prohibited to disassembly without
authorization. Otherwise, it will reduce the reading accuracy of the micro eyepiece.
l The storage and using of the reading microscope should avoid dust, damp and corrosive gas environment;
l If there is dirt on the surface of the reading microscope lens, please wipe it with soft absorbent cotton or lens paper. If
there is oil pollution, please wipe it slightly by the absorbent cotton with industrial alcohol or ether.
l Don’t disassemble the instrument without authorization, maintenance related matter, please contact MITECH after-sale service department with 4000600280.
-
-

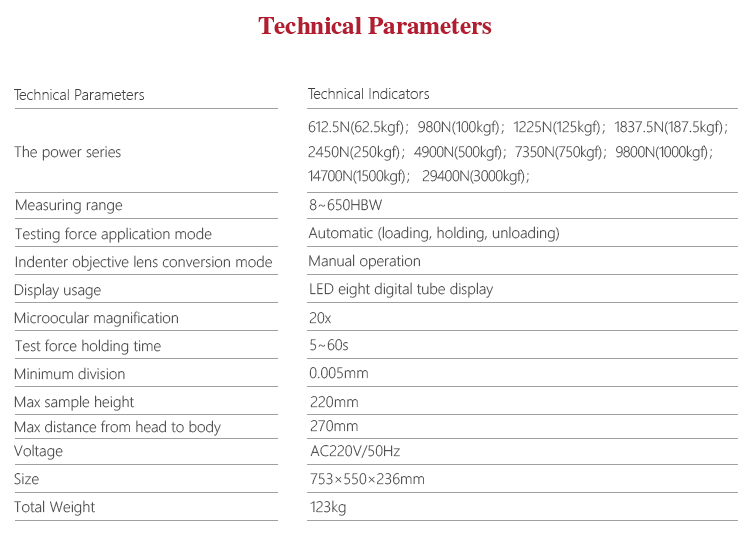

The power series 612.5N（62.5kgf）、980N（100kgf）、1225N（125kgf）、1837.5N（187.5kgf）、 2450N（250kgf）、4900N（500kgf）、7350N（750k Testing Force Application Mode Automatic (loading, holding, unloading) Indenter objective lens conversion mode manual operation display usage LED eight digital tube display Microocular magnification 20X Test force holding time 5~60s Minimum division 0.005 mm Max sample heigh 220mm Max distance from head to body 270mm Voltage AC 220V/50Hz Size 753×550×236 mm Total Weight 123 kg -
-
